Futaba Compatible S-FHSS 4CH SBUS Dual Antenna Receiver Module / TM-FH RF [AGFRC] RFS04C

Futaba Compatible S-FHSS 4CH SBUS Dual Antenna Receiver Module  / TM-FH RF [AGFRC] RFS04C

Receiver RFS04C  4CH SBUS  Dual Antenna Receiver Module Compatible : Futaba S_FHSS / TM-FH RF

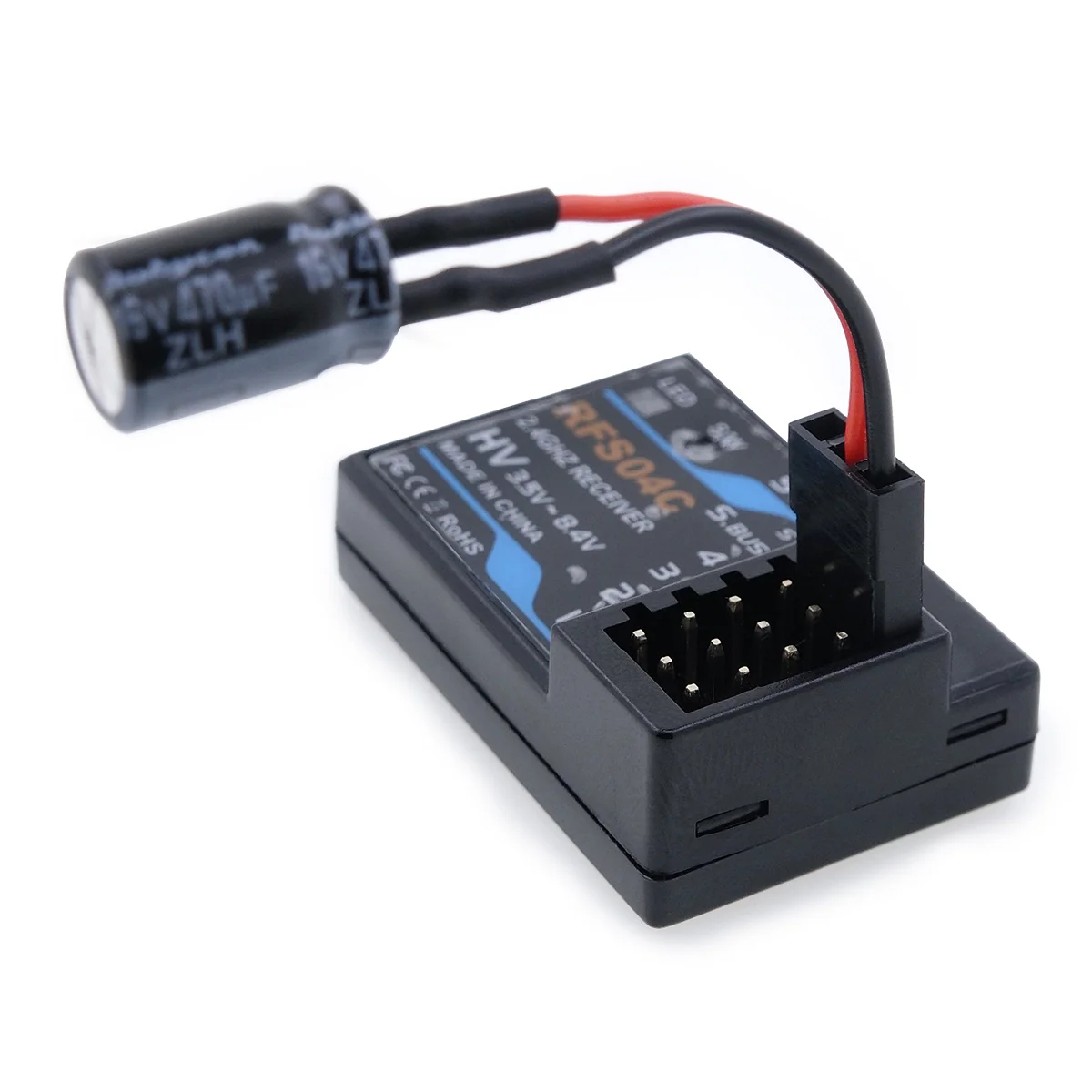

includes glitch buster.

Compatibility

Compatible : Futaba S_FHSS / TM-FH RF Module

Suitable for Futaba 4PX, 7PX, 4PV, 3PV etc. S_FHSS system



Specification

Operating Voltage: 3.3V～8.4V

Dimension: 35.5x23.3x13.2mm

Weight: 7.3g

No. Of Channels: 4CH+ SBUS

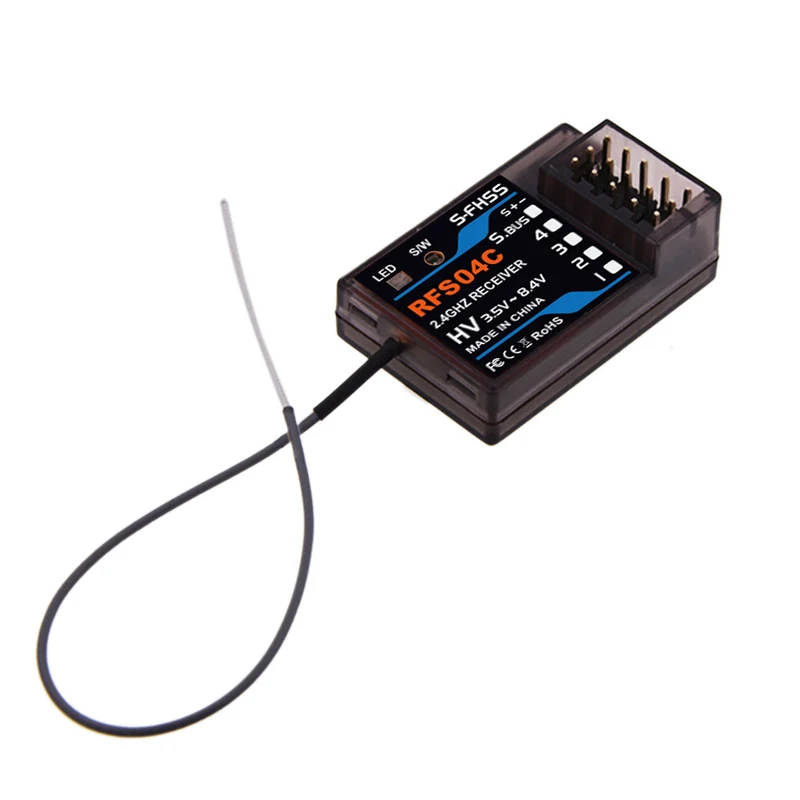

Antenna: Dual Antenna



Feature





1) Dual-antenna receiving system, built-in and external antenna to keep it concise and improve high receiving sensitivity;

2) Integrated voltage stabilizing circuit, operating voltage can be 1s-2s lipo, it won’t be out of control for instantaneous voltage reduction;

3) Full 4CH output + SBUS port, suitable for the remote control cars, Rock Crawlers which required more channels



Bind Procedure

1. Bring the transmitter and the receiver close to each other within 20 inches (half meter).

2. Turn on the transmitter.

3. Turn on the receiver

4. Press and hold the Link switch more than two(2) seconds. When the link is complete, the LED in the receiver changes to solid green.

It could be failed to bind as the environment, please repeat the above steps.
