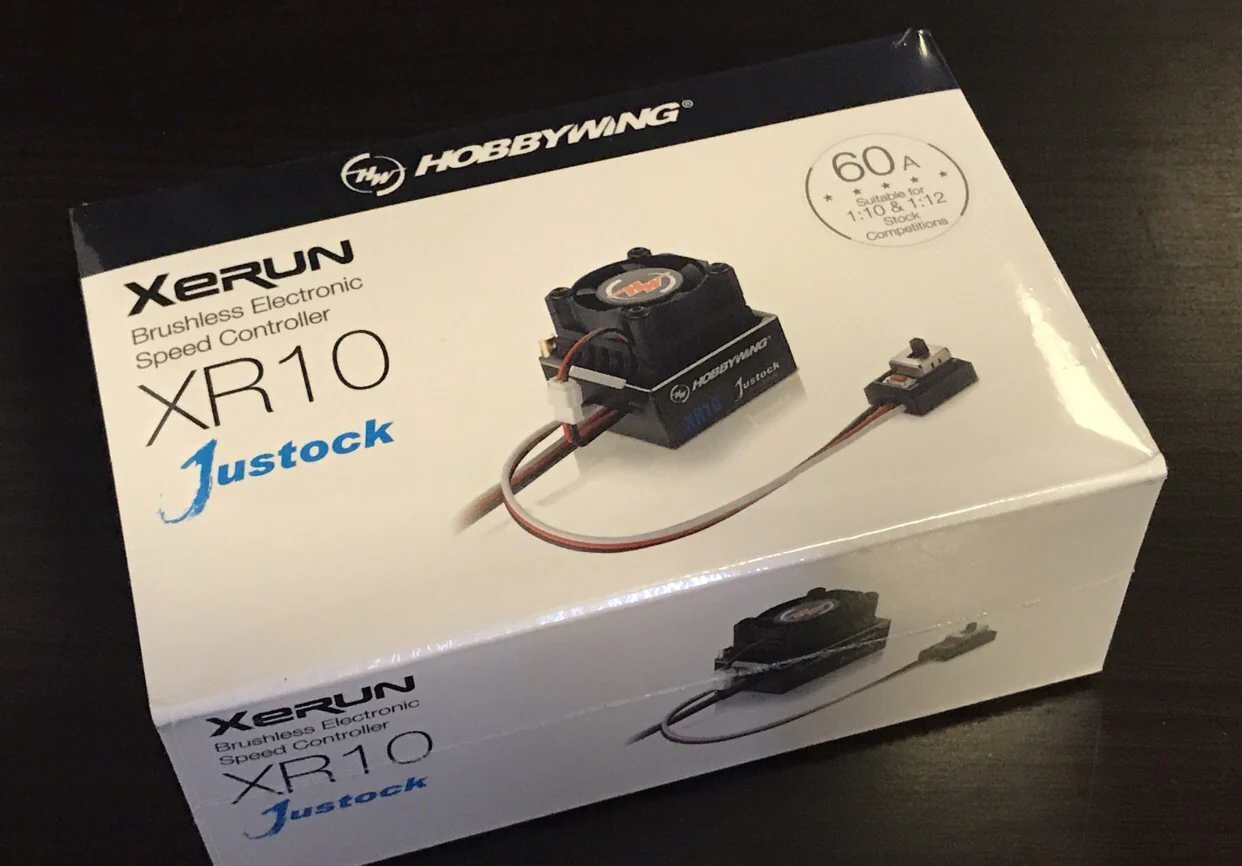

XeRun XR10 (60A) ESC Speed Controller [Hobbywing] 30112000

ZERO-timing

ROAR APPROVED IIC SPEC CERTIFIED
1/10, 1/12 on-road & off-road CLUB competition

Specification:

• Compact design for easy installation.
• Compatible with sensored/sensorless brushless motors. In sensor mode, it’s compatible with most popular sensor- brushless motors on the market. In sensorless mode, it’ s compatible with 99% of brushless motors on the market.
• Aluminum housing top with excellent heat dissipation and great current endurance.
• The timing has been permanently set to 0 degree. With the identical competition motor, this ensures that every driver will have the same power system.
• Proportional brake with 4 steps of maximum brake force, 8 steps of drag brake force and 4 steps of initial brake force.
• 9 levels of acceleration/ punch from “soft” to “aggressive” for different vehicles, tires and tracks.
• Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection and fail safe (throttle signal loss protection).
• Single-button ESC programming and factory reset.
• Advanced programming via portable LED program card or multifunction LCD program box. ( Purchase separately)
• Firmware upgrade via HOBBYWING multifunction LCD program box (purchase separately).
• Cooling fan is included.
• HOBBYWING's Innovative heat dissipation structure aluminum bottom case improves the heat dissipation - Patent pending
• Pre-soldered professional grade gauge wires

Specification	XR10 Justock
Current	Continuous:60A, Burst: 380A
Input * Note #1	2-3S LiPo or 4-9 cells NiMH/NiCd
Built-in BEC	6V@2A (linear mode BEC)
ESC programming	Via RX Cable (or Throttle Control Cable)
Motor Supported	Sensor and sensorless brushless motor
Motor KV Limit	With 2 Lipo or 4-6 NiMH 1/10 on-road: >=8.5T, 1/10 off-road: >=11.5TWith 3 Lipo or 7-9 NiMH 1/10 on-road: >=13.5T, 1/10 off-road: >=17.5T
Suitable Car	1/10,1/12 all competitions 1/10,1/8 rock crawler
Cooling Fan	Powered by  stable BEC 6V
Size	33.5mm(L) * 28.5mm(W) * 30.5mm(H)
Weight	59.8g (w/o wires, cooling fan)
* Note #1 For 4-6 cells NiMH/NiCd or 2S LiPo, the standard cooling fan needn't be changed. For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan needs to be changed to 12V high voltage fan.
