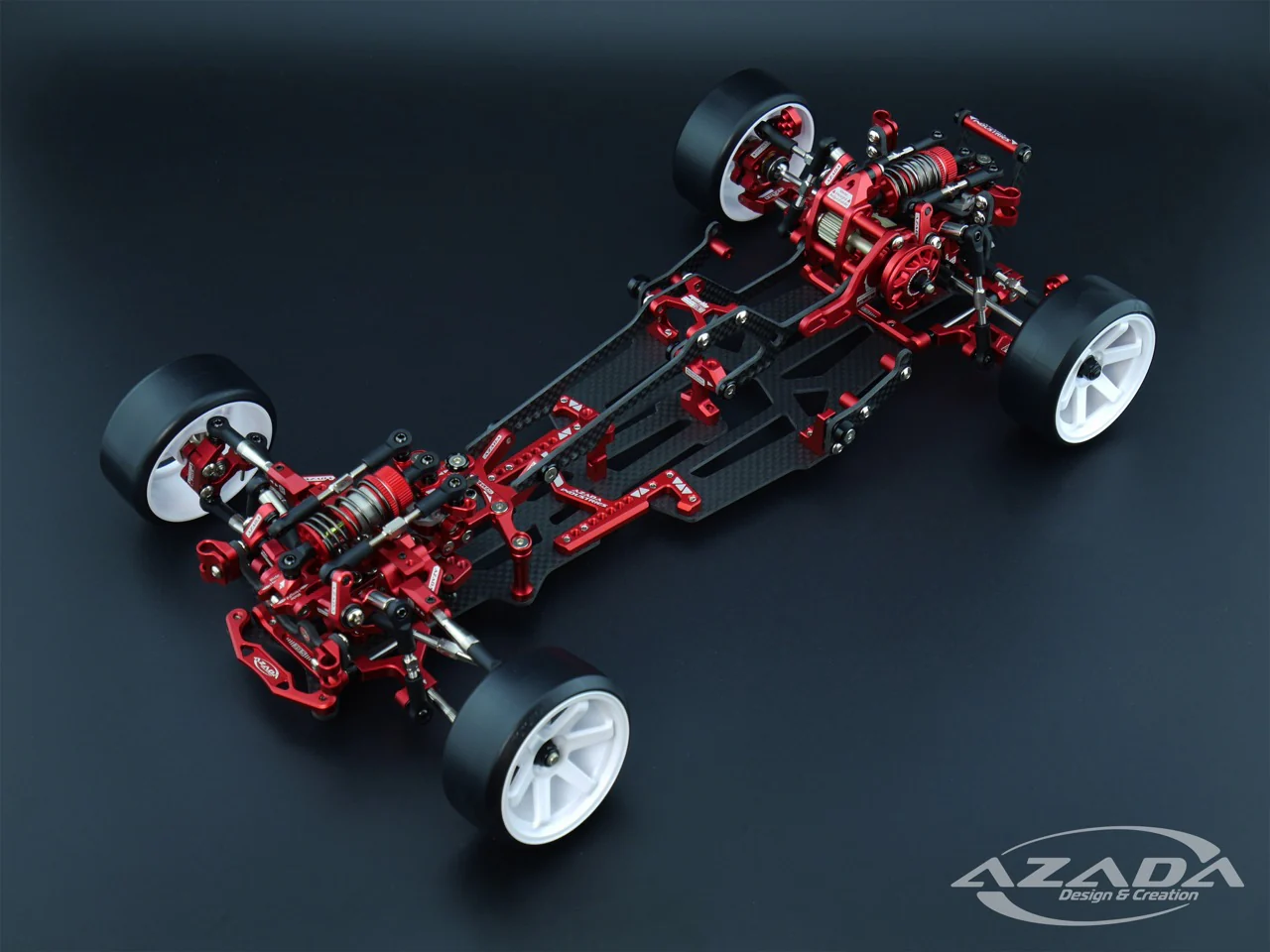

DISCONTINUED: MERLIN 1/10 R/C RWD Competition Drift Car Chassis (Decoupled Suspension System) [Azada]

*This is a preorder, the chassis's will be arriving mid/late October 2024.

It is a limited production run. Support parts will be available for purchase thru Azada.

MERLIN 1/10 R/C RWD Competition Drift Car Chassis (Decoupled Suspension System) [Azada]

Azada - Merlin DECOUPLED SUSPENSION SYSTEM

This car comes FULL ASSEMBLED by Azada.
*electronics sold separately.

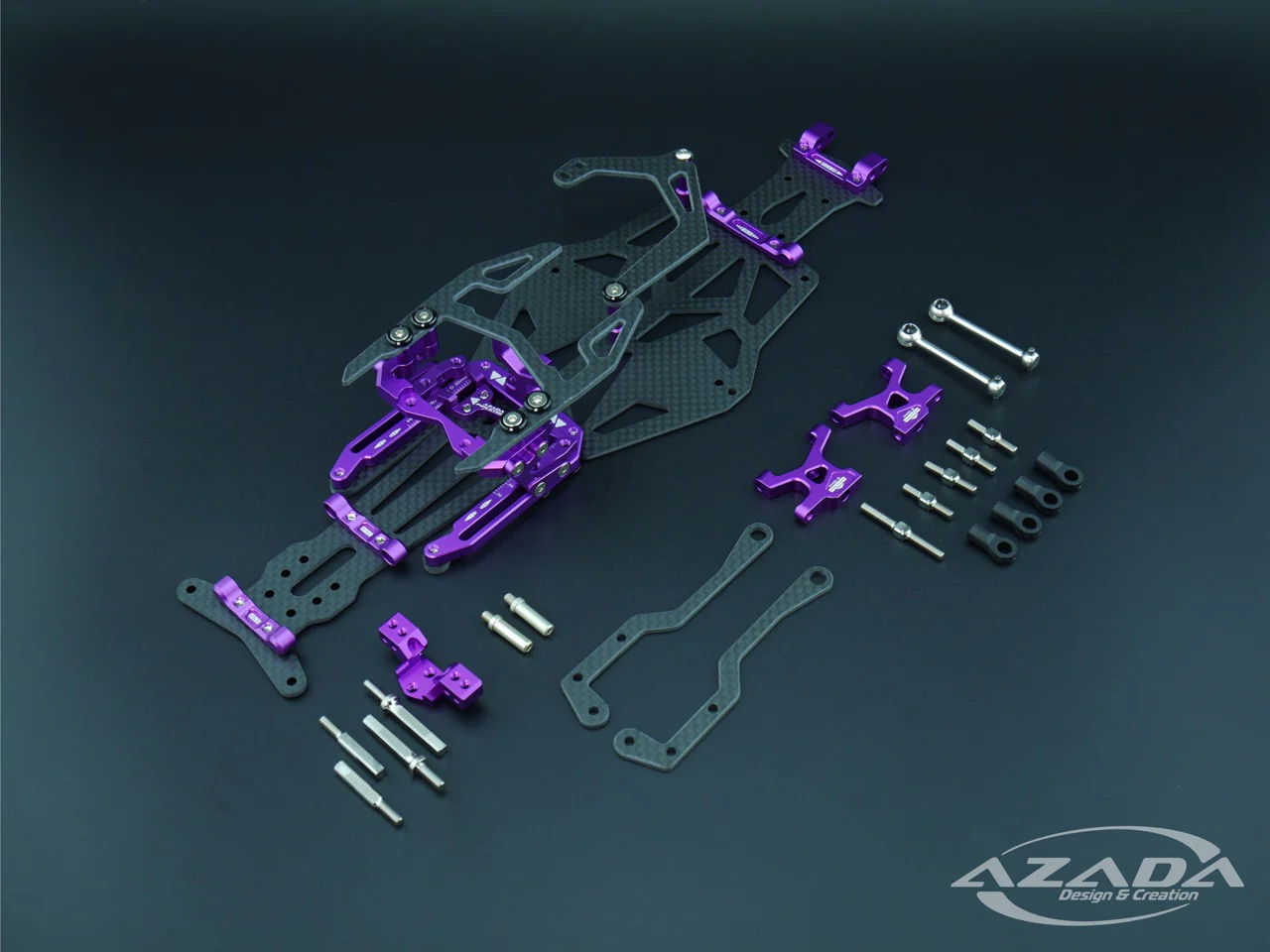

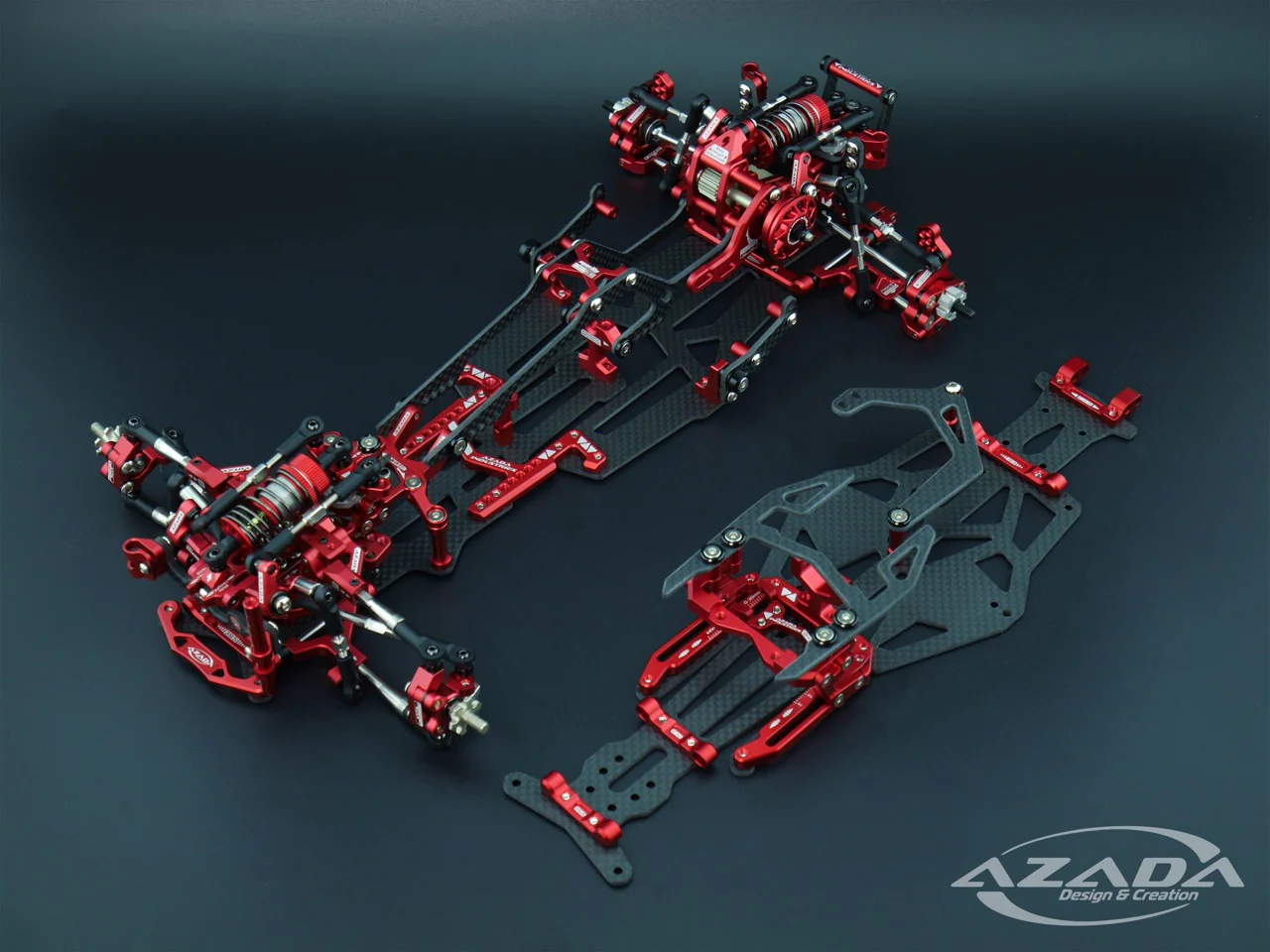

The limited edition package includes a Merlin-specific M-chassis conversion kit, with a wheelbase adjustable from 210-240mm (continuously variable) and track width adjustable from 160-180mm (offset 0mm wheel parameters).

Limited edition for sale:
Red (total of 60 units) and Purple (total of 60 units) each with a unique serial number.

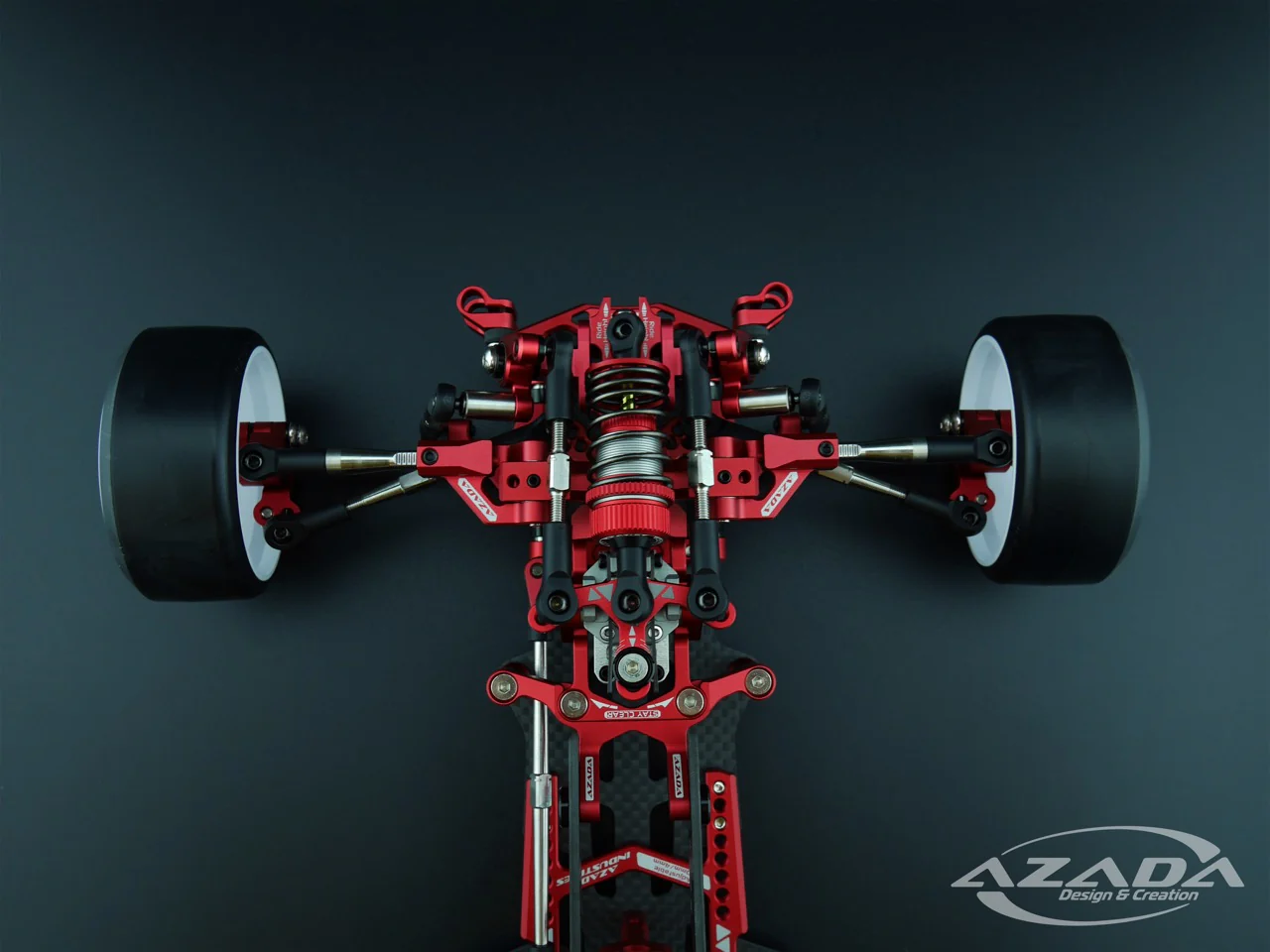

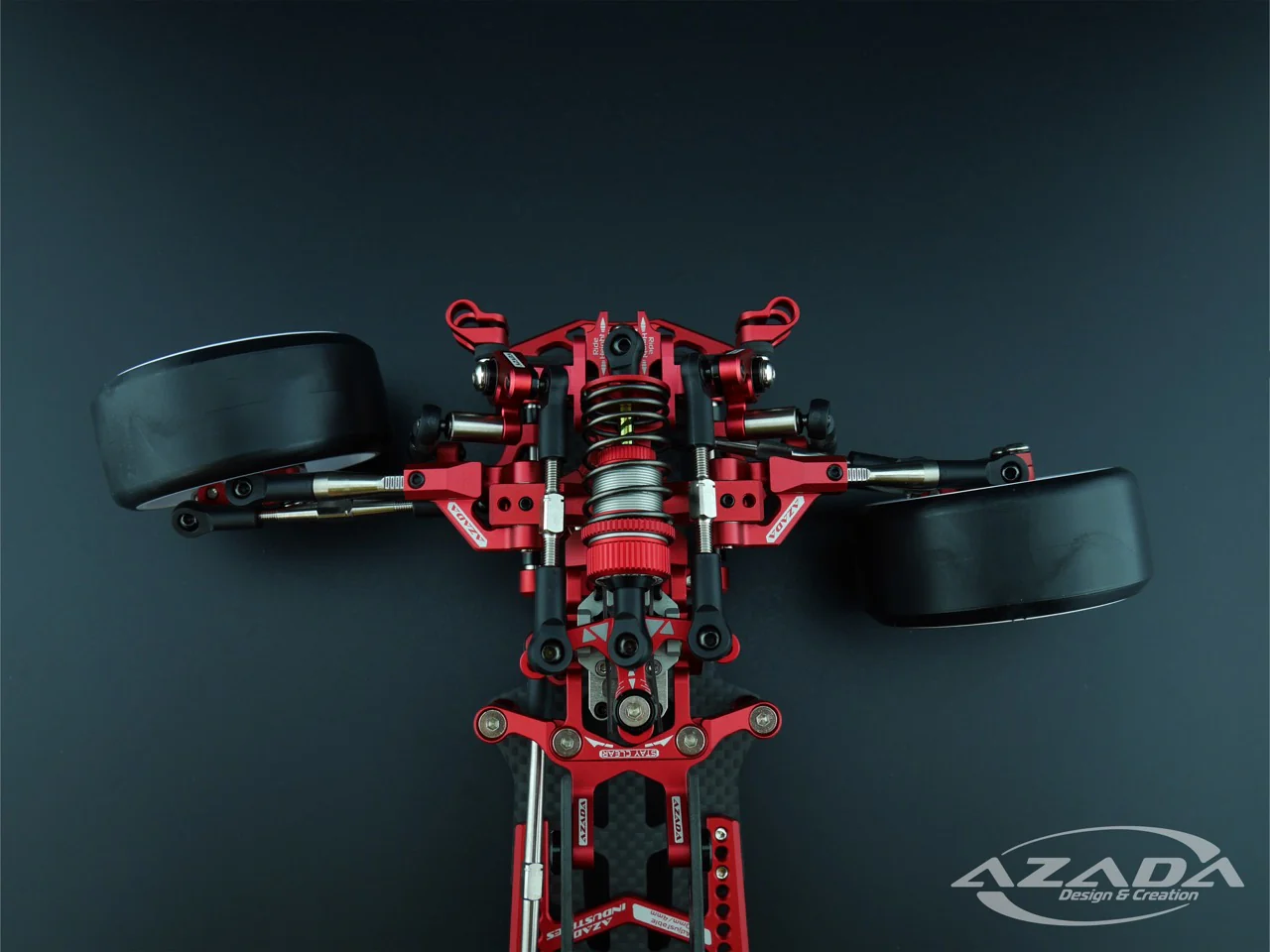

The chassis features a decoupled suspension design, enabling decoupling of the four vehicle body modes, namely bounce, roll, pitch and warp；

Extensive adjustable design, such as:

Quick adjustment of ride height without changing the full length and running distance of the dampers;

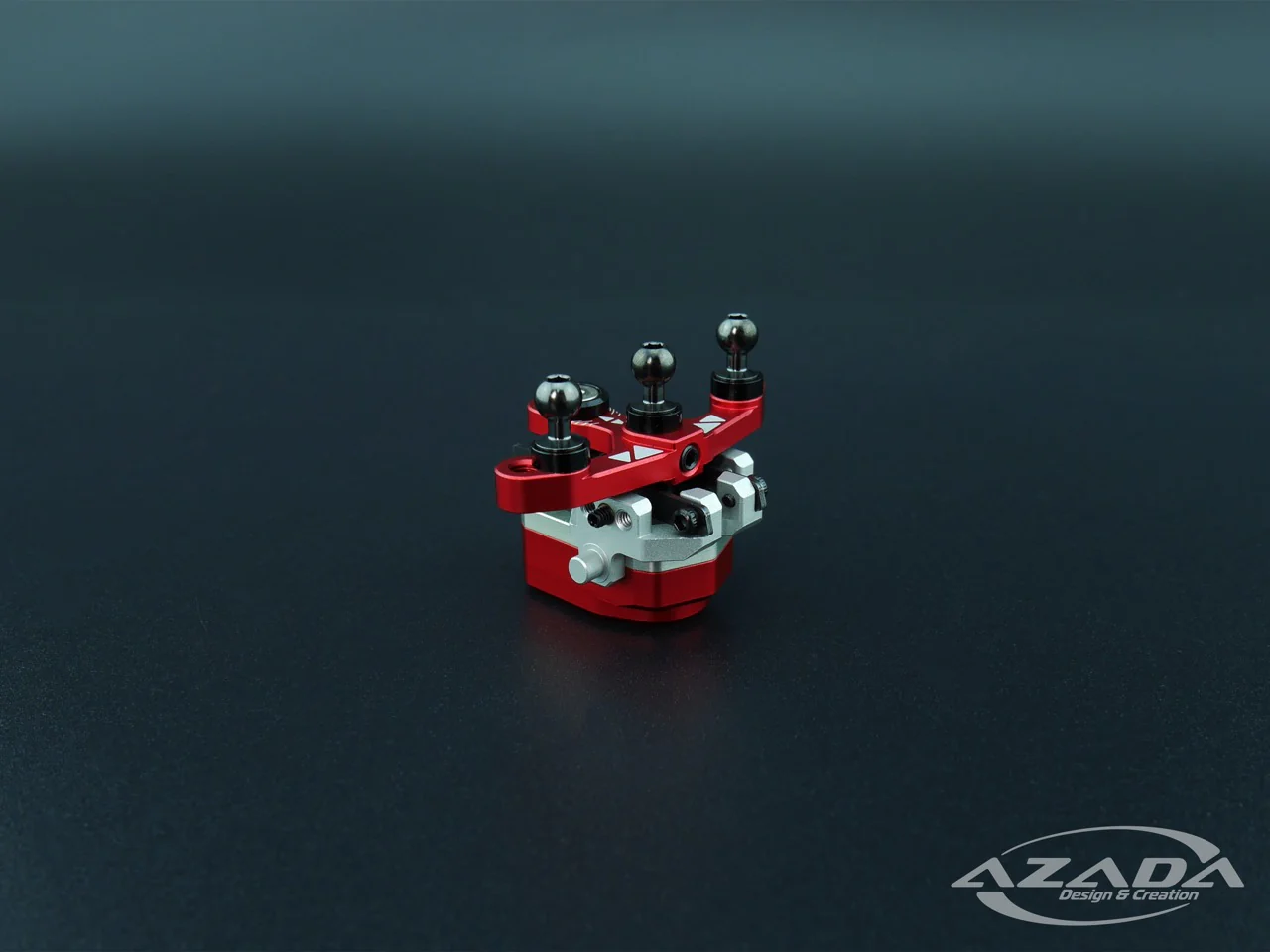

Multi-parameter adjustable steering assembly to meet different front axle setting requirements;

Multi-parameter adjustable steering block, such as Offset and KPI, and stopper pin is able to stopped on any position with the off-axis design;Multi-parameter adjustable rear hub carrier, the offset and the vertical position of the driveshafts  are adjustable;

The front suspension low arms are adjustable in 0-11mm；

The rear suspension low arms are adjustable in 0-10mm;

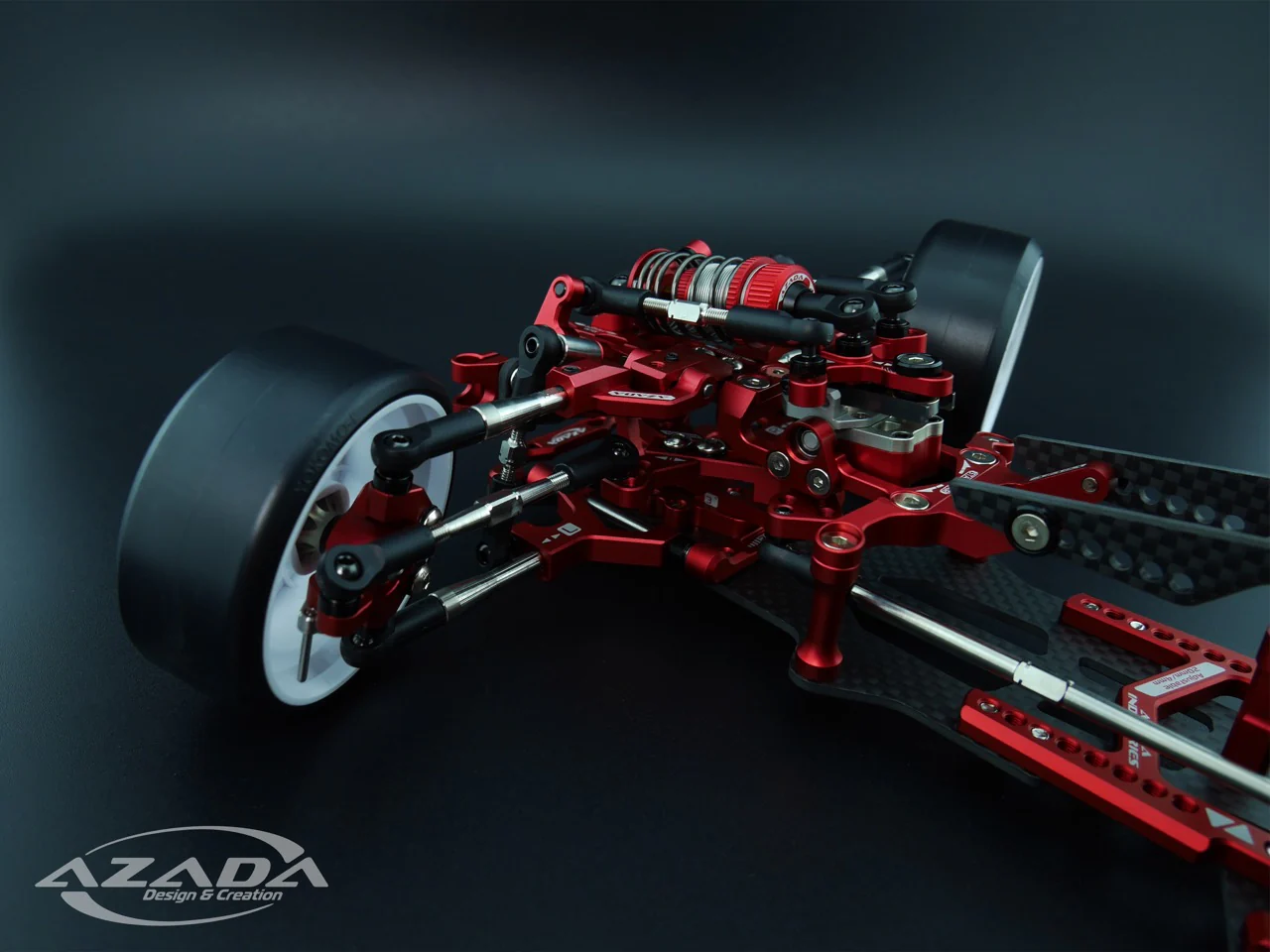

Dual damper design，the damper of spring-piston to reflect bounce and pitch，and the rotating damper to reflect roll and warp；

The adjustability of rotating damper：the position of leaf spring fulcrum is adjustable，the length of torque link of leaf spring is adjustable，the leaf spring are stackable;
 
All of turnbuckles are made of TC4 titanium alloy

All of ball studs are made of 7075-t6 aluminum alloy with DLC film;

Shock shaft with Hydrogen-free diamond-like carbon (DLC) films

The wheelbase of the chassis is adjustable, ranging from 237-257mm, with increments of 4mm.
