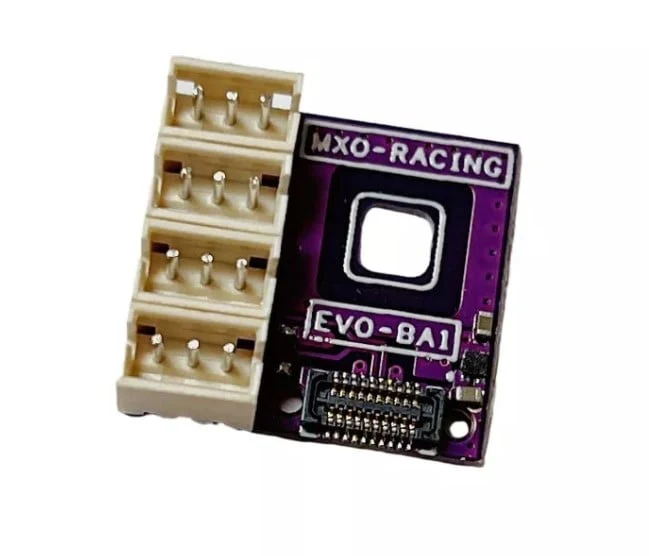

MINI-Z EVO Receiver Conversion 4CH Receiver Module [MXO RACING] EVO-BA1

MINI-Z EVO Receiver Conversion 4CH Receiver Module [MXO RACING] EVO-BA1
MX EVO BA1 Manual
MX EVO BA1 is a switching work mode product developed for MX EVO RX series products . After the MX EVO RX is installed in the EVO BA1 , the MX EVO RX works in the 4CH PWM standard signal mode .
Features :
Size: 16 . 2*15 . 2*6 . 5mm;
Weight: 0 . 95g;
Working voltage: 3 . 5V ~ 8 . 5V;
Let all products of MX EVO RX series output 4CH PWM signal;
Provide online firmware interface for MX EVO RX series products (Note 1) .
Note 1: MX EVO RX -SANWA V2 . 15 does not support online firmware upgrade , but can read firmware version and
other information .
Interface (EVO BA1 on the left, EVO BA1 with MX EVO RX-SANWA installed on the left):
CH1: ST
CH2: TH
CH3: AUX1
CH4: AUX2/DATA(Online firmware upgrade interface)
GUI download link: update . crossover -rx . com/mxo .zip
