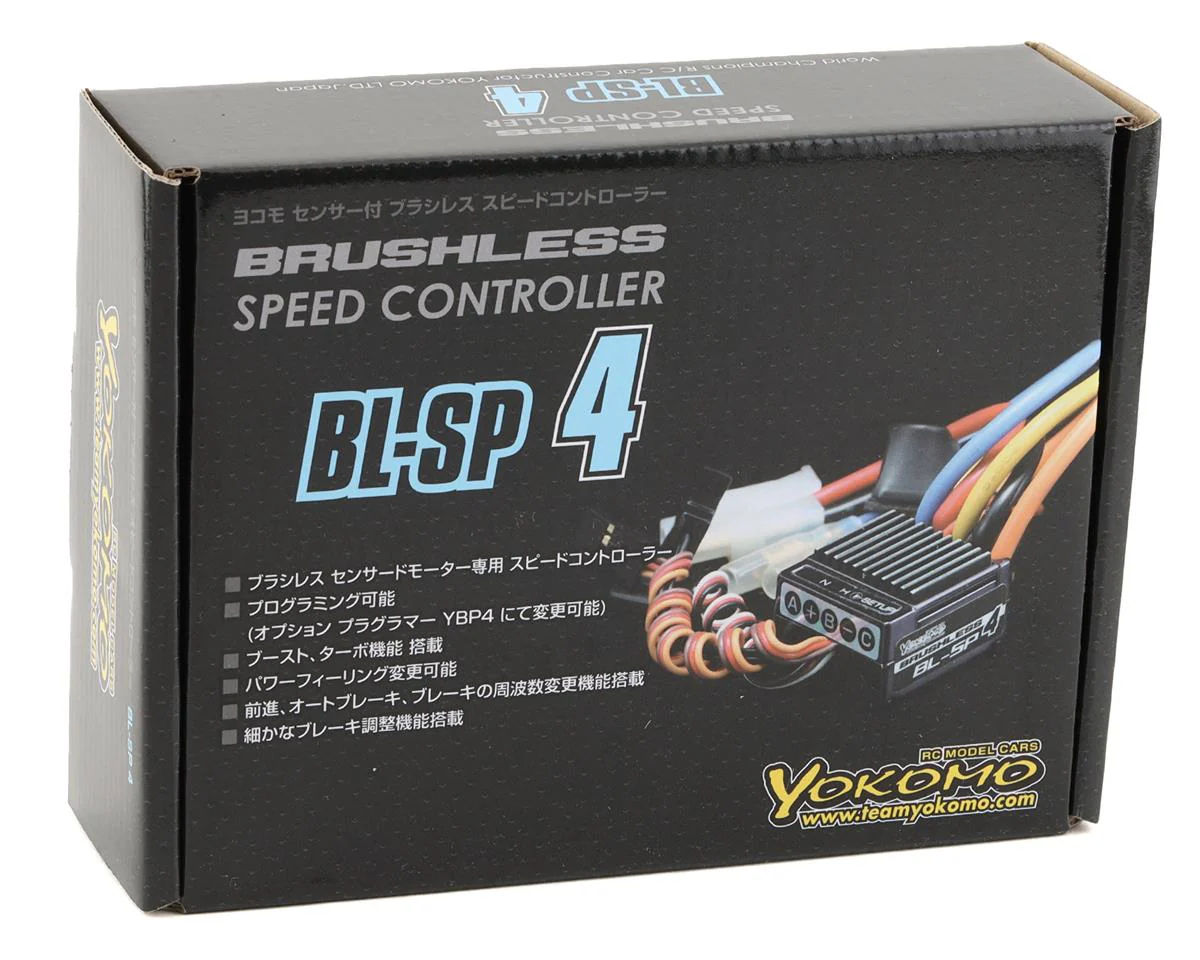

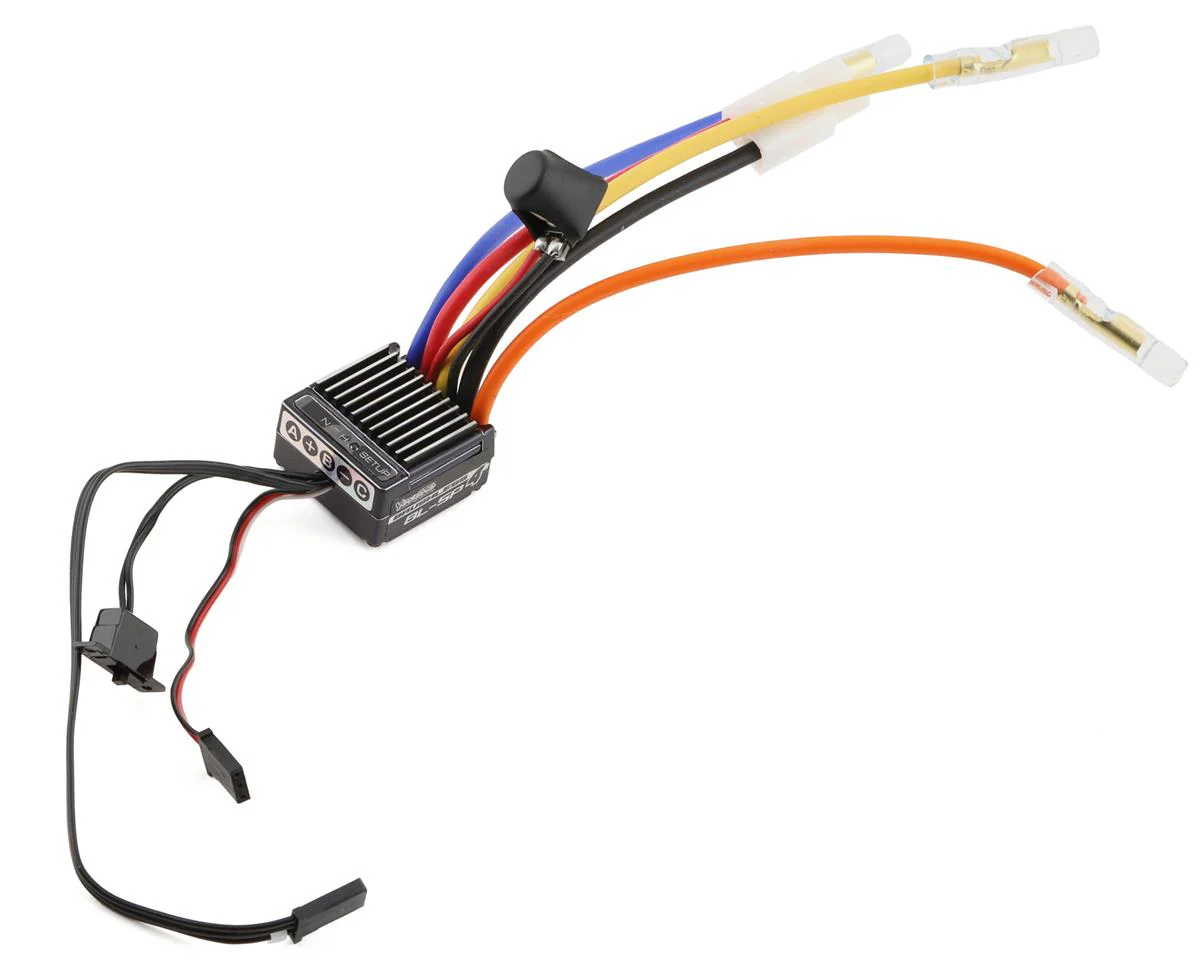

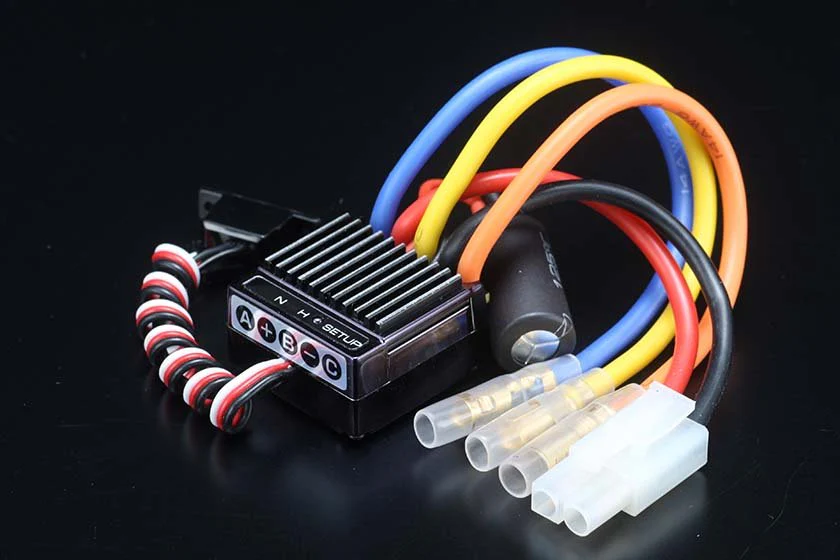

Yokomo BL-SP4 Brushless Electronic Speed Control ESC [Yokomo] BL-SP4B

Instruction Manual: https://teamyokomo.com/downloadfiles/!02!MANUAL/!02!ELECTRONICS/Speed_Controler_BL-PRO4_RS4_SP4_Manual.pdf

The Yokomo BL-SP4 Brushless ESC Speed Controller features turbo throttle function which can boost the highest speed with precision at reasonable price! The throttle and brake can be programmed the same as the PRO4 / RS4 models, allowing fine adjustment. While it is a compact housing that is easy to fit in a variety of applications, do not let its size fool you. This ESC is highly tunable and an ideal first ESC for people who are new to brushless systems.

NOTE: BL-YBP/YBP2/YBP3 programmer is not compatible. BL-YBP4 programmer is required for BL-PRO4/RS4/SP4 models.

• Dedicated sensored brushless controller
• Programmable with YOKBL-WM Wi-Fi module or BL-YBP4 Programmer
• Boost and turbo function installed
• Power feel can be adjusted
• Advance, auto brake, brake frequency change function installed
• Detailed brake adjustment function installed
• 1S LiPo compatible
• ABS function

Specifications:
Voltage: 1-2S LiPo

Corresponding motor: Brushless 8.5 T (13.5 T when using turbo function, 13.5 T or less is recommended for drifting run)

Input voltage: NIcd / NiMH: 4 to 6 cells Lipo / Life: 2 cells

BEC voltage: 6.0 V / 3.0 A

Case size: 29.1x29.0x18.5mm (excluding protrusions)
